Fitting

All fixtures and fittings are included in the box so you can put your Mirror/Cabinet on the wall/table as soon as you receive it. If you need more information then please call or email for a full explanation on fitting and how the Mirror/Cabinet and its different features works.

Technical Info

• Bluetooth™ Specification
• Bluetooth™ , 3.0+EDR compliant
• Typical +2dBm Class 2 output power
• Receiver Sensitivity: GFSK typical -90dBm,


• Amplifier Specification
• 0.03% THD+N @10W 4ohm
• 0.1% THD+N@12W 4ohm
• 0.18% IHF+IM@1W 4ohm
• High power
• 25W@4 ohm,10% THD+N Vdd=14.6V
• 22W@4 ohm,10% THD+N Vdd=13.5V
• 13W@8ohm ,10% THD+ N Vdd+13.5V
• Class-T architecture
• High efficiency
• 88% @12W 8ohm
• 81% @ 20W 4ohm
• Dynamic range=99dB
• Over-current protection
• Over-temperature protection


• Speaker Specification
• Frequency Response: 550Hz - 17KHz
• Impedance: 6.4 ohms@400Hz
• Power: 50W Max


• Mirror Specification

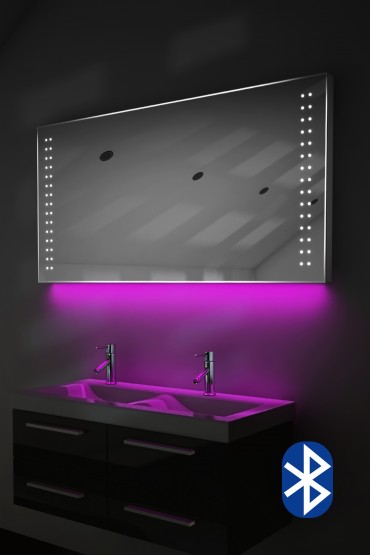

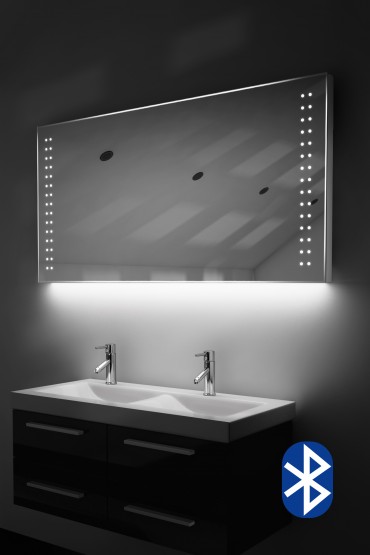

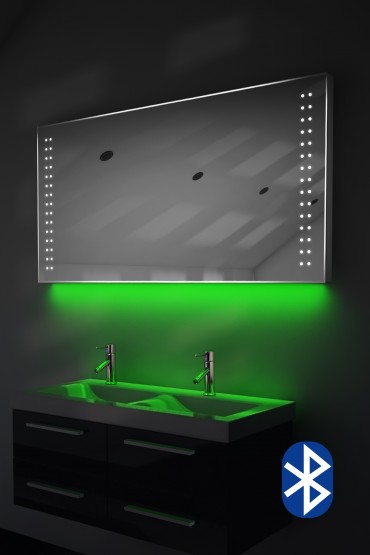

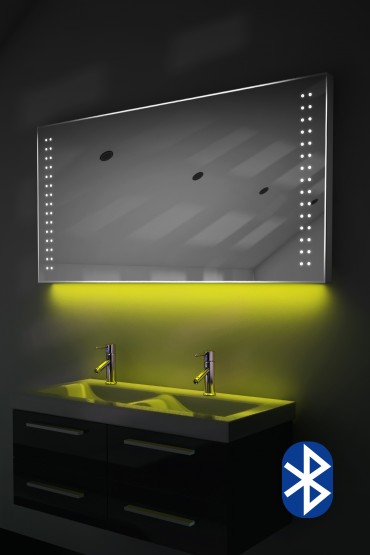

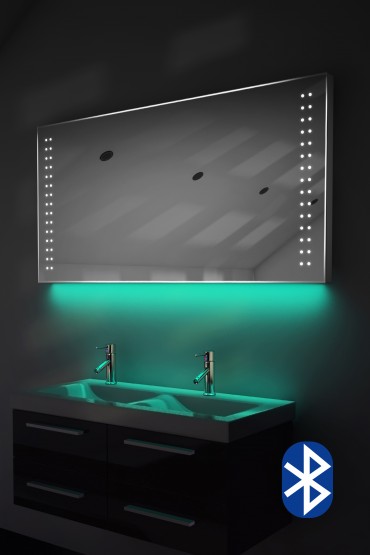

• RGB Colour change LED waterproof light bar fitted to underneath of mirror.
• Remote control.
• 60 x 0.1w Low energy Led white lights (included).
• 240 volt shaver socket with integral on/off rocker switch.
• Shaver socket can be used with lights off.
• Built-in full size demister pad that switches on and off with lights.
• SELF branded Led driver included.
• Infra red sensor switch positioned bottom of the frame. Please allow at least 10cm from nearest obstacle e.g Basin, Tap, etc.,
• Rear back box is made of mild steel powder coated white to a gloss finish.
• The mirror has a 2mm beveled edge.
• This mirror needs to be connected to an earth wire.
• Please ask a professional if you are not capable of fitting yourself.
• The Mirror is in accordance with IP44, CE and RoHS regulations.
• Net Weight 18Kg.
